Racking installation is non-negotiable when it comes to warehouse safety, efficiency, and regulatory compliance. Yet too often, the process is derailed before it begins—by unlevel foundations or improperly embedded components. These issues, if overlooked or mismanaged, create structural instability, paving the future plight for the warehouse. This article dismantles these problems in real terms and shows certain managable methods about how to address them, decisively and without compromise.

Why Foundation Irregularities Are a Hidden Threat

Unlevel surfaces do more than just misalign racking—they ripple into systemic vulnerabilities. The racking frame loses alignment, anchor bolt tension becomes uneven, and pallet loading limits become unreliable. Over time, even minor deviations in floor elevation can amplify stress distribution, resulting in bending moments, unexpected sway, and even collapse under dynamic load conditions.

• +3mm in floor deviation can produce up to 15% increase in vertical load strain at anchor points.
• Forklift operations over uneven bases cause increased shock to frame joints.

Core Symptoms of Installation Failure

• Uneven load distribution on beams
• Difficulty anchoring base plates
• Shimming gaps visible at column bases
• Distorted uprights under moderate loads
• Anchor bolts not achieving full torque

Analyzing the Two Core Problems

1. Foundation Not Leveled: A Structural Compromise

Root Causes:

• Poor civil work planning
• Uneven concrete pour and curing
• Tolerance ignorance (neglecting flatness specification: FF ≥ 50; FL ≥ 30 for AS4084-2023)

What Happens Next:

An unlevel base warps the entire racking structure. No matter how robust the racking system is, if the load path starts from a skewed line, the stress distribution becomes erratic. Upright deflection multiplies. Load cells carry weight off-center. Beams twist. Post-installation issues cascade into operational hazards.

Solutions That Work:

Step	Action	Purpose

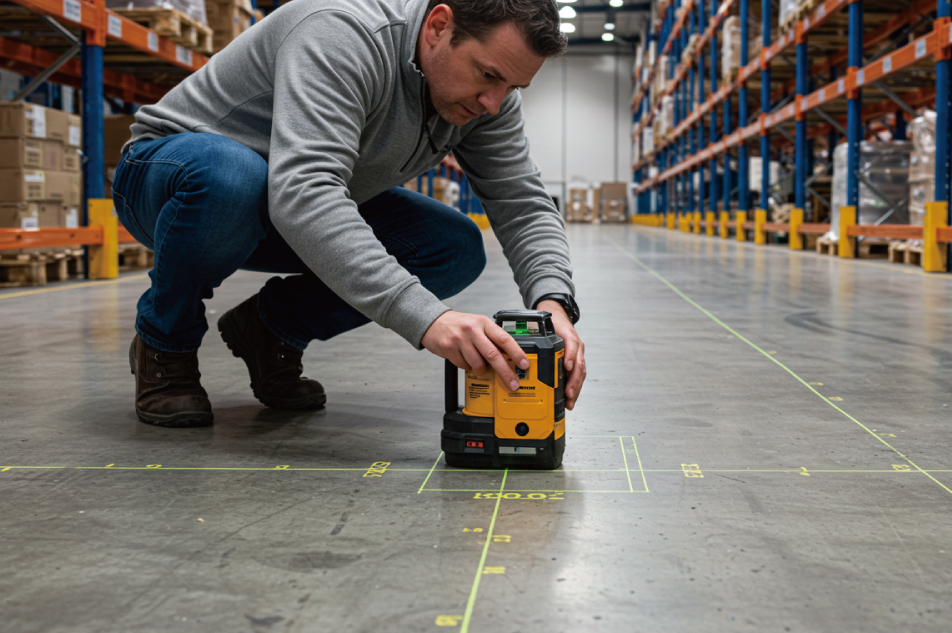

1	Use a laser level (accuracy ±0.5mm) to assess entire installation zone	Pinpoint high and low spots
2	Mark deviation zones exceeding ±2mm	Create a leveling grid
3	Apply precision grout compound under baseplates (non-shrink, cementitious)	Restore vertical alignment
4	Use calibrated steel shims (max 3mm per layer, max 3 layers)	Stabilize base physically
5	Re-check level post-adjustment using 2-meter digital straightedge	Confirm structural flatness

⚠️ Reminder: Never install racking directly on epoxy without verifying compressive strength compatibility. Dynamic loading will shear the adhesive layer.

2. Embedment Anchors Misaligned or Absent

Root Causes:

• Wrong layout markings during civil phase
• Rebar collision during anchor drilling
• Incorrect use of chemical anchors in dynamic load zones
• Construction delays skipping coordination between builder and racking contractor

Operational Impact:

Misplaced or missing anchors are not just annoying—they’re dangerous. Each base plate requires a specific anchoring force (typically ≥ 10kN for static racks). Without that, the racking has no verified resistance to tipping, lateral sway, or seismic vibration.

Countermeasure Framework:

• Minor Misalignments (<10mm deviation):
  • Oversize the anchor hole to accommodate lateral adjustment
  • Install chemical anchor with load-rated epoxy (must comply with ICC-ES or ETA certification)
• Missing Anchors:
  • Relocate base plate within permissible racking layout deviation (max ±50mm)
  • Add lateral bracing or horizontal support frames
  • Use heavy-duty drop-in anchors rated for cracked concrete zones
• Reinforcement Measures:
  • Add stiffener plates at anchor junctions
  • Introduce a continuous kick plate between adjacent uprights

Reminder: All anchor solutions must be load-certified. Engage a structural engineer if deviation exceeds 15% of original anchor plan layout.

Prevention: Site Coordination Before Installation

Set a Pre-Installation Checklist

• Floor Survey: Laser-scan level report with deviations mapped to ±1mm
• Anchor Layout Approval: Signed-off drawing with exact embedment coordinates
• Coordination Meeting: One-time review between civil contractor, racking supplier, and project manager

Document Requirements:

• Concrete compressive strength report (minimum 25MPa)
• Anchor pull-out test certification
• Racking load capacity verification

Note: Never accept handover from the construction team without formal site documentation.

Execution Protocol During Installation

Task	Tool/Method	Technical Note
Level Verification	Auto-leveling laser tools	Calibrate daily
Anchor Setting	Hammer drill + torque wrench	Torque: 60–80Nm standard
Shim Application	Stainless steel shims only	No plastic spacers
Base Plate Contact	Full contact with grout or concrete	No air gaps

Post-Installation Inspection

• Use a plumb bob test on every upright (max deviation: 1/1000 height)
• Load testing with 50% of max rated weight for 48 hours
• Anchor torque recheck after 24 hours

Maintenance Considerations:

• Loosening of anchor bolts
• Shifting of shims
• Crack formation around base plates
• Frame lean exceeding 1 degree

Schedule structural audits every 6 months. Preventive measures beat corrective downtime every time.

FAQs

Q1: Can I install racking on slightly uneven floors if I use thicker base plates?
A: No. Thicker base plates don’t resolve the root leveling issue. They only mask it, creating false confidence in stability.

Q2: What’s the tolerance limit for floor flatness in high bay warehouses?
A: According to EN 15620 and AS4084-2023, high bay installations should not exceed ±2mm over 3 meters. Anything beyond that requires remediation.

Q3: Can I rely solely on chemical anchors for fixing if embedment bolts are missing?
A: Only in non-dynamic zones and with ICC-ES or ETA-rated products. Dynamic loading zones require mechanical anchoring with certified load testing.

Q4: Should epoxy flooring be applied before or after racking?
A: After. Floor coatings can interfere with proper base plate contact and anchoring integrity. Always install after racking if epoxy is used.

Q5: Is it acceptable to use wooden shims temporarily during leveling?
A: Absolutely not. Wood compresses under load and absorbs moisture, leading to long-term instability. Use only certified steel shims.

Final Takeaway

The integrity of a racking system starts at the ground level—literally. An uneven foundation or compromised anchor positioning isn’t a minor inconvenience; it’s a structural hazard. If you would not risk the endless bills of maintenance and reconstruction, it's pivotal to bear in mind to prioritize proactive site assessments, enforce strict quality protocols, and never cut corners during leveling or anchoring.
