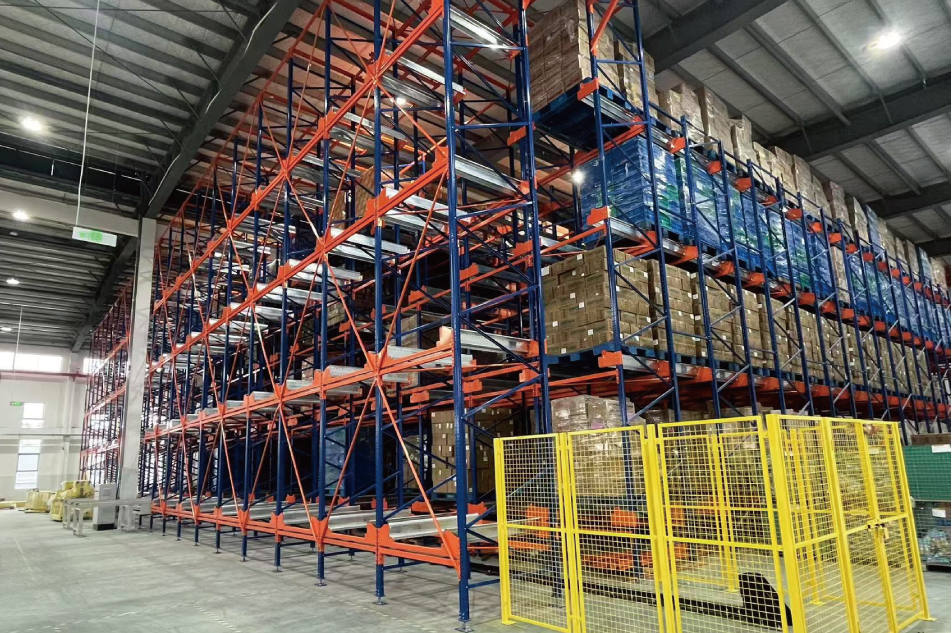

Revolutionising Automated Storage with 4-Way Shuttle System

A four way shuttle system transforms traditional warehouse operations by enabling fully automated, high-density storage retrieval processes. Unlike standard ASRS solutions, it operates on a multi-directional axis, drastically increasing throughput, flexibility, and adaptability. This novel storage system has become essential for modern logistics operations requiring storage strategies and dynamic inventory handling.

Core Mechanism and Intelligent Navigation

The four way shuttle system comprises autonomous mobile shuttles equipped with forks to transport pallets. These units travel in four directions: forward, backward, left, and right. Operating on rails within racking structures, they allow for horizontal and vertical pallet movement, optimizing storage space and accessibility. Coordinated via an integrated Warehouse Management System (WMS), these palelt shuttle carts ensure precise order retrieval and inventory placement without manual intervention.

Advanced Space Utilisation

• Vertical and Horizontal Efficiency: This system maximises horizontal layout potential with a working height of up to 15 meters. It outperforms traditional ASRS systems by boosting space efficiency by 5–10%.
• Compact Layouts: By eliminating wide travel aisles, it increases available storage volume and adapts easily to irregular warehouse geometries.

Superior Throughput and Order Fulfillment

• Accelerated Operations: Multiple shuttles can operate simultaneously, significantly increasing throughput.
• Efficient Order Management: The shuttle system shortens the picking cycle, improving storage retrieval rates and speeding up order fulfillment.

Adaptable Storage Strategies

This system supports diversified storage methodologies:

• By Lot, By Batch, and By Order
• FIFO, LIFO, LEFO
• SKU-specific, Location-based, and Customised holds

Its adaptability makes it ideal for food, beverage, and chemical industries, where batch traceability and temperature regulation are crucial.

Scalability and Modular Expansion

• Horizontal Scalability: Expandable by adding shuttle carts—without halting ongoing operations.
• Modular Deployment: Easy integration into existing infrastructure without significant overhauls.

Maintenance and Downtime Management

• Operational Continuity: In case of failure, other shuttles continue functioning, minimising operational disruption.
• Maintenance Needs: Periodic inspections and battery charging are required, yet far less intensive than stacker-based systems.

Temperature Resilience and Environmental Range

The system operates reliably in environments ranging from -25°C to 40°C, suitable for cold storage and temperature-sensitive inventory.

Comparison: 4-Way Shuttle vs. Stacker Crane ASRS

Feature	Four-Way Shuttle	Stacker Crane ASRS
Storage Utilisation	Horizontal max (15m), higher density	Vertical focus (up to 40m height)
Throughput	Medium, multi-unit ops	High (with multiple stackers)
Maintenance	Regular battery & sensor checks	Minimal but complex repairs
Expansion Flexibility	Easy horizontal scalability	Requires vertical system modifications
Downtime Impact	Low, system redundancy	Higher, full stacker replacement needed

Integration with Smart Warehouse Infrastructure

Four way shuttle systems integrate seamlessly with digital twins, WMS platforms, and IoT devices. This synergy supports predictive maintenance, real-time inventory monitoring, and analytics-driven operational strategies.

Applicable Industries and Use Cases

• Cold Storage Facilities: Maintains integrity in extreme environments.
• E-commerce Hubs: Accommodates high SKU variety with fast picking needs.
• FMCG and Manufacturing: Enhances retrieval efficiency and batch tracking.

Racking Compatibility and System Variants

Four-Way Shuttle Systems support various racking types:

• Drive-in and Shuttle Racking: Optimised for deep-lane storage.
• Selective pallet racking: For high turnover SKUs.
• Custom Hybrid Racking: Designed for unique warehouse layouts.

Variants include:

• Radio-Controlled Shuttles: Wireless data transfer for real-time commands.
• Wire-Guided Models: Floor-embedded guidance systems for high-precision alignment.

Conclusion

The four way shuttle system marks a significant shift from static to fully automated storage retrieval. Its strengths in scalability, throughput, inventory control, and adaptability position it as a future-proof solution for businesses seeking to future-proof their warehousing operations.

If you would like to install four way shuttle system for your warehouse, just feel free to contact our team of experts now.
